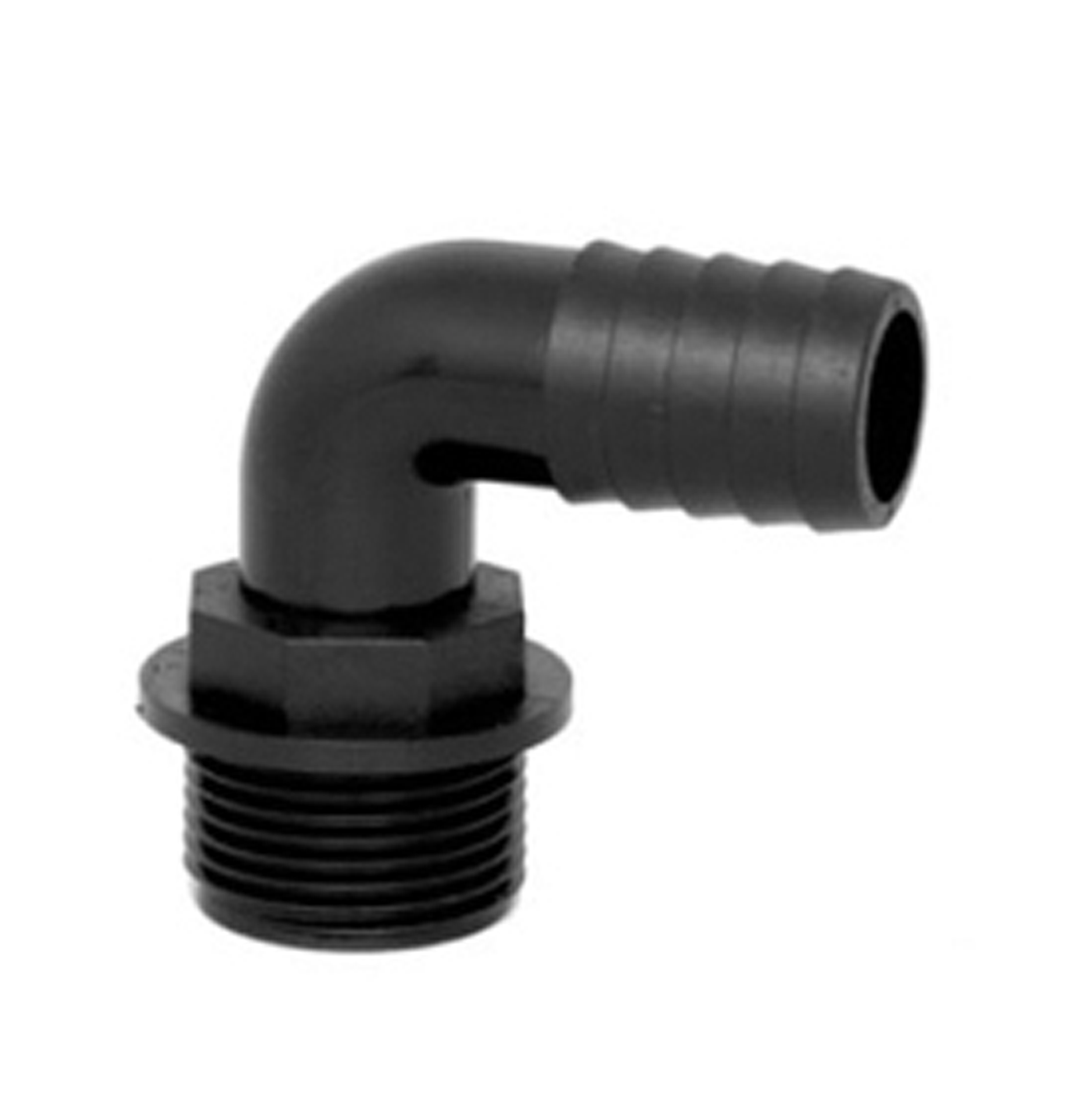

RACORD PORTAMANGUERAS CURVO 90° ROSCA MACHO
RACORD PORTAMANGUERAS CURVO 90° ROSCA MACHO
|

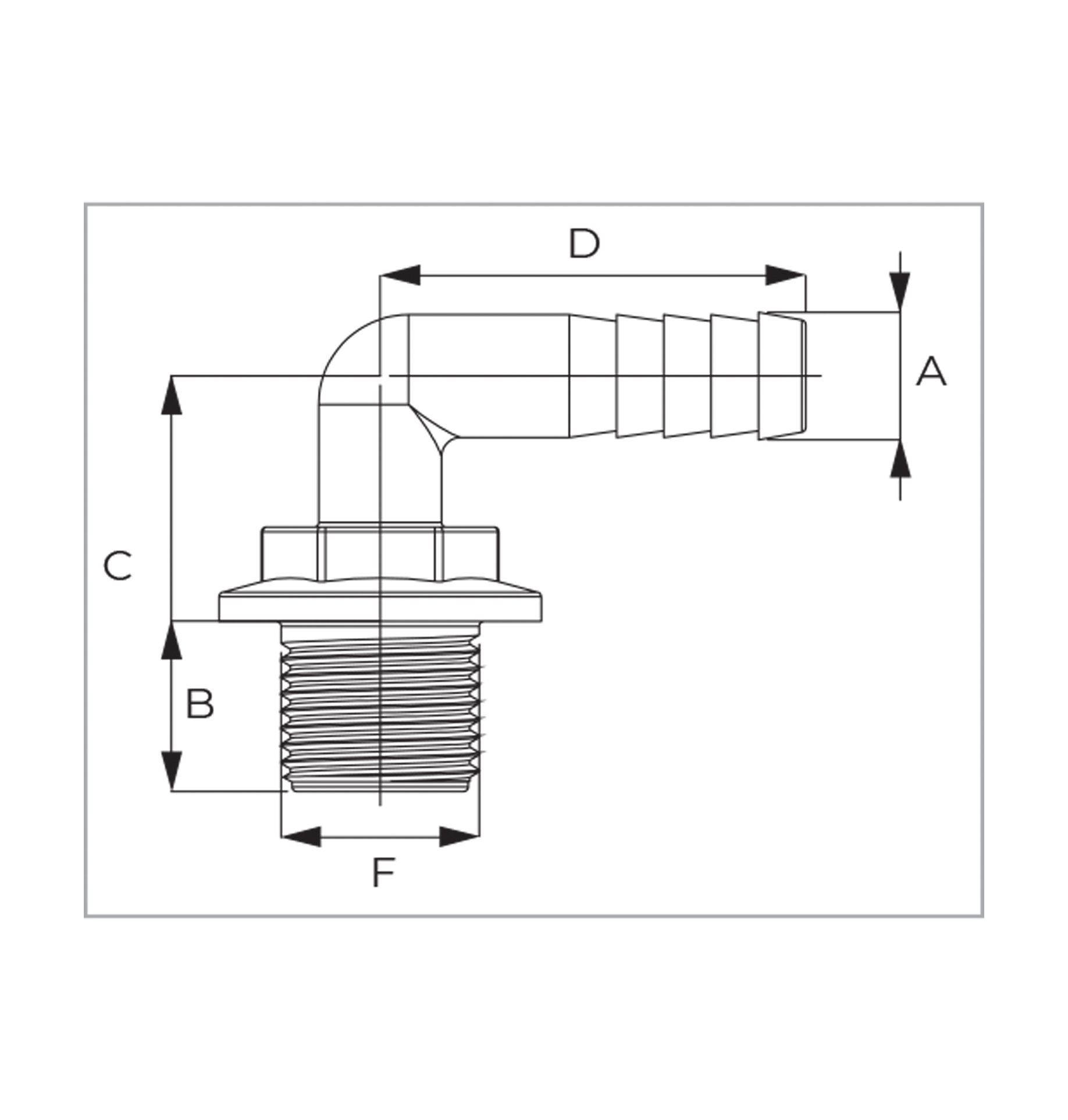

Código |
F |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
|
1011010 |
G 1/2” |
10 |
18 |
44 |
45 |
|
1011011 |
13 |
18 |
44 |
45 |
|
|
1011013 |
20 |
18 |
44 |
53 |
|
|
1011021 |
G 3/4” |
13 |
22 |
50 |
45 |
|
1011023 |
20 |
22 |
50 |
53 |
|
|
1011024 |
25 |
18 |
55 |
53 |
|
|
1011031 |
G 1” |
20 |
22 |
50 |
53 |
|
1011032 |
25 |
22 |
59 |
53 |
|
|
1011034 |
32 |
22 |
60 |
60 |
|
|
1011041 |
G 1 1/4” |
25 |
24 |
65,5 |
53 |
|
1011043 |
32 |
24 |
62 |
60 |
|
|
1011046 |
40 |
24 |
70 |
84,5 |
|
|
1011052 |
G 1 1/2” |
32 |
24 |
62 |
60 |
|
1011055 |
40 |
24 |
70 |
84,5 |
|
|
1011061 |
G 2” |
50 |
27 |
88 |
89 |
|
1011016 |
G 1/2” |
13 |
27 |
50 |
45 |
|
1011018 |
20 |
27 |
50 |
53 |
